Fuel consumption data from Caterpillar high speed engines are general +/- 3%, including engine driven pumps (fuel transfer pump, oil pump and cooling water pump).

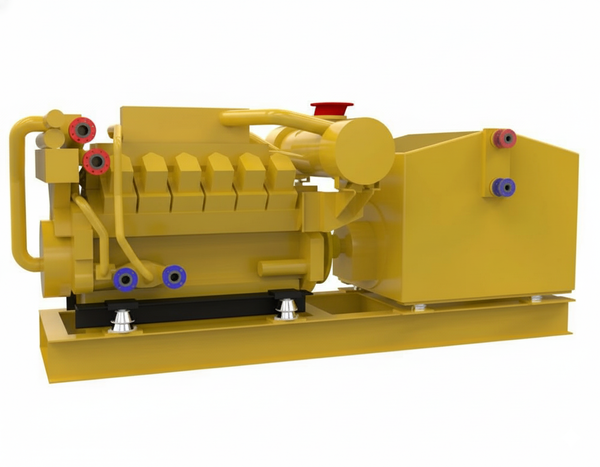

CAT 3512C
Propulsion genset
- Hertz: 60Hz
- Cooling: Keel
- Mounting: Genflex
- Generator: Marelli
- Emission: IMO II / IMO III
Read more about CAT SCR
Fuel Consumption
| Load [%] | BSFC [g/bkW h] |
| 100 | 200,3 |
Log in to view all rows.
Must be accounted for when comparing with engines where fuel consumption is given with tolerance +5% and approximately +1% per engine driven pump.
Downloads
You need to
sign up
or log in to download
simplified drawings
and full specifications.
Dimensions & weight
- Width: 2132 mm
- Height: 2203 mm
- Length: 5268 mm
- Weight: 15500 kg
- Compact Genset Design using our GenFlex assembly technology, reducing generator wear and structure borne noise.
- Full tailor made possibility, yard supplied generators or other makes possible.
- Possibility for both dual and triple isolation design, for extreme requirements on structure borne noise
- Full tailor made possibility, yard supplied generators or other makes possible.
- Possibility for both dual and triple isolation design, for extreme requirements on structure borne noise
Changelog
2020-10-21
added SCR
